Wasp printer makes intricate parts

Feb. 22, 2023
The 60100 HDP uses granules to produce parts with surfaces equal to those created by FDM 3D printers, at a fraction of the cost.

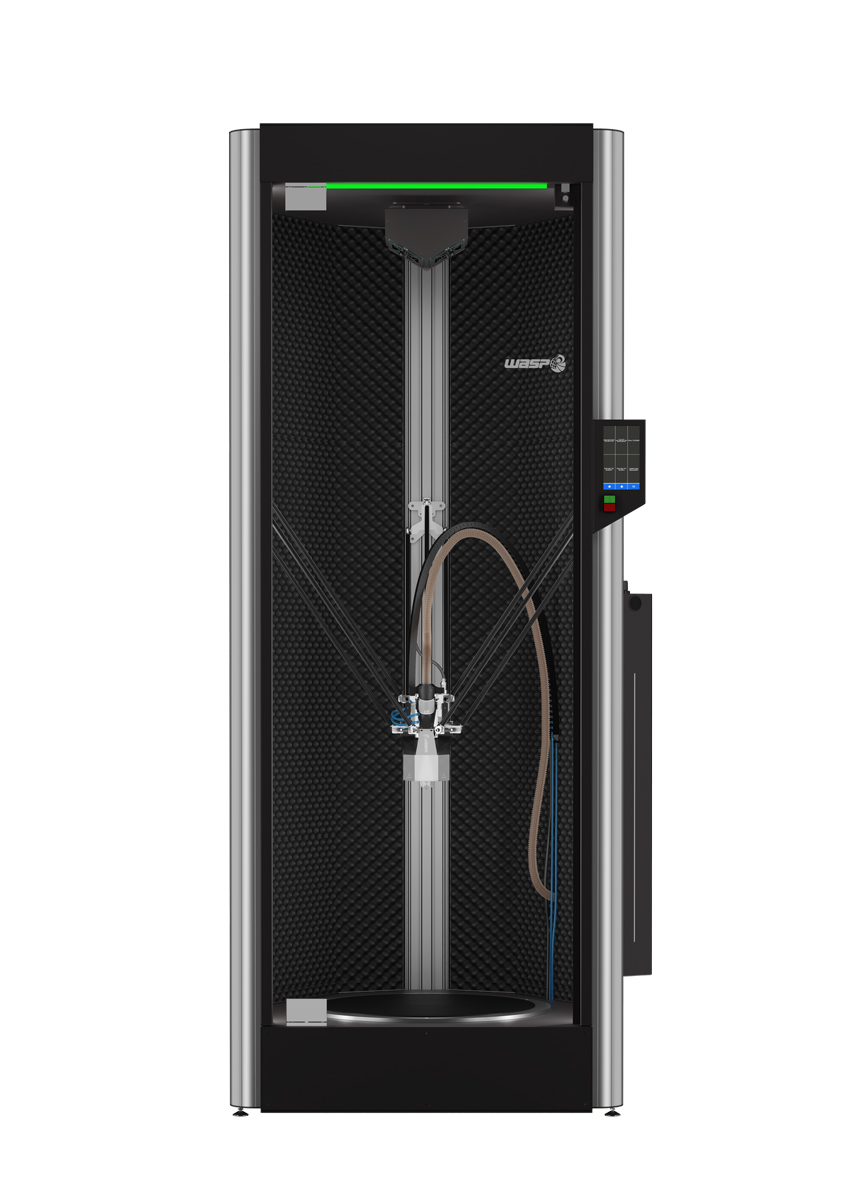

60100 HDP Wasp’s new medium- and large-format fused-granulate-fabrication 3D printer is useful for prototyping and testing resins, making it appropriate for small-series production and the creation of intricate parts that are difficult to manufacture on standard equipment. It can make orthopedic busts and medical braces.

What’s new? The printer, which will be available in June. It includes Wasp’s hot-chamber system, called Firecap, installed on the effector. It’s capable of reaching 392 degrees Fahrenheit, while the extruder can print at temperatures of up to 932 degrees Fahrenheit. The printer will be available in June.

Benefits The ability to produce parts with surfaces equal to those created by fused-deposition-modeling 3D printers, but at a fraction of the cost because the 60100 HPD prints directly from granules. Because its extruder can handle high temperatures, the printer can process high-grade technopolymers, such as polyetheretherketone.

Wasp srl, Massa Lombarda, Italy, 39-0545-87858, www.3dwasp.com/en

Vital Statistics

Machine weight: 551 pounds

Print volume: Up to 23.6 inches (diameter) by 39.4 inches (height)

Hot-end temperature: Up to 932 degrees Fahrenheit

Localized chamber temperature: Up to 392 degrees Fahrenheit

Materials: Polylactic acid (PLA) and 100 percent recycled PLA, ABS, polyetheretherketone, polyphenylene sulfide, PET, acrylonitrile styrene acrylate

Nozzle diameter: From 0.7mm to 3mm

Print speed: Up to 7.9 inches per second

Travel speed: Up to 11.8 inches per second
