    1. Molds & Tooling
    2. Hot Runner Systems

    HRSflow cylinders targeted at multicavity molds

    April 6, 2021
    The S Series cylinders for hot-runner systems are appropriate for the production of technical parts, electronic parts and consumer goods.
    HRSflow

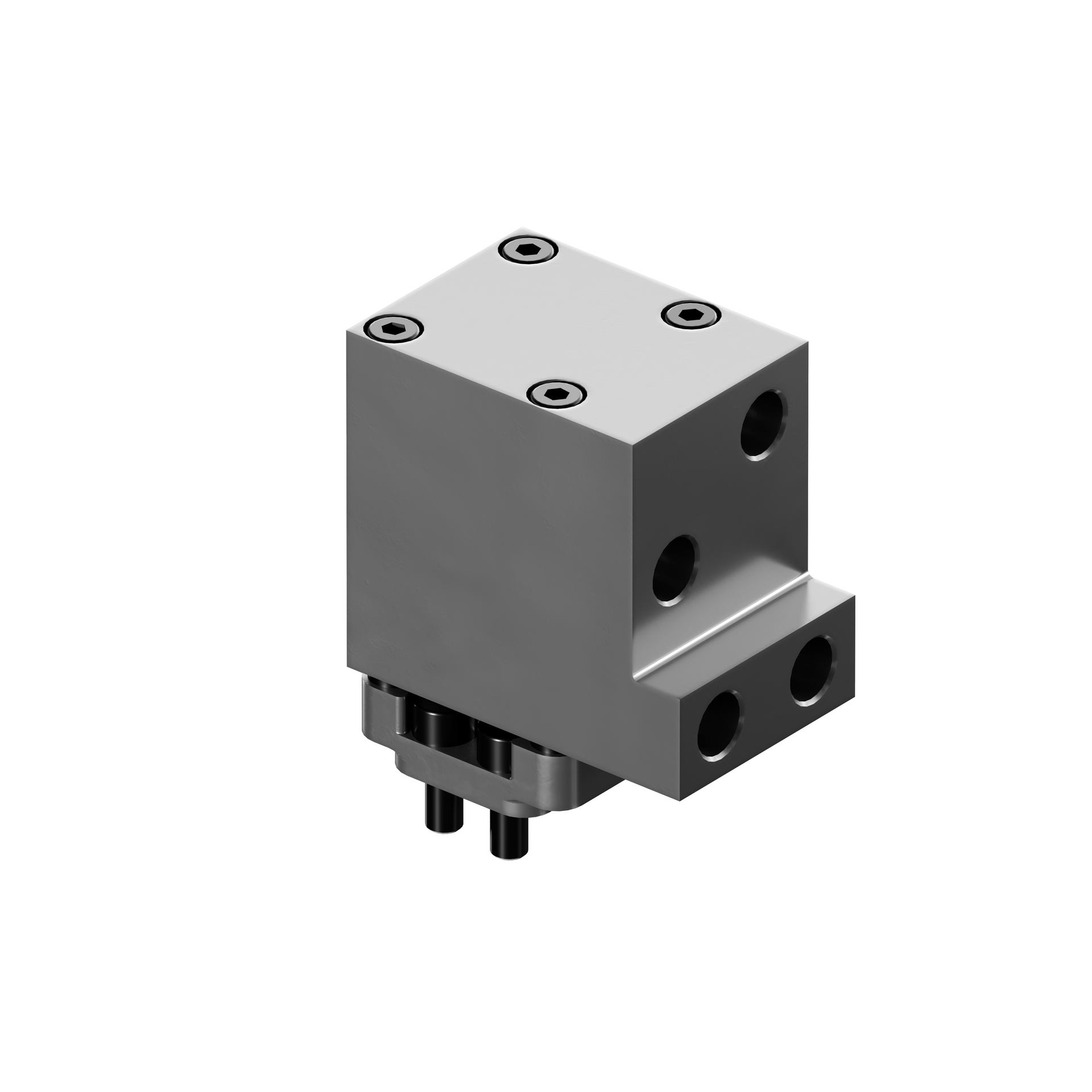

    The basic version of the S Series cylinder
    The basic version of the S Series cylinder

    S-series cylinders Appropriate for production of technical parts, electronic parts and consumer goods, these compact cylinders for hot-runner systems are especially suited for applications with small shot weights and multicavity molds. They facilitate extremely accurate molding of small automotive parts, such as air-conditioning components and interior switches.

    What’s new? The cylinders, which come in two versions: basic and adjustable. The basic version requires a cutout height in the mold of 2.56 inches, and the adjustable version requires a cut-out height of 2.87 inches. The patent-pending devices are suitable for use with engineering resins.

    Benefits Compactness, allowing for the use of a thinner mold plate. The cylinders’ reduced width allows for a minimum nozzle pitch of 1.46 inches. The adjustable version allows the pin position to be changed by as much as 1mm.

    HRSflow/INglass USA Inc., Byron Center, Mich., 616-228-6900, www.hrsflow.com
