Warp Inoex’s Warp family of products uses radar technology to provide precise, contactless measurement of pipe diameter and wall thickness as the products are being extruded.

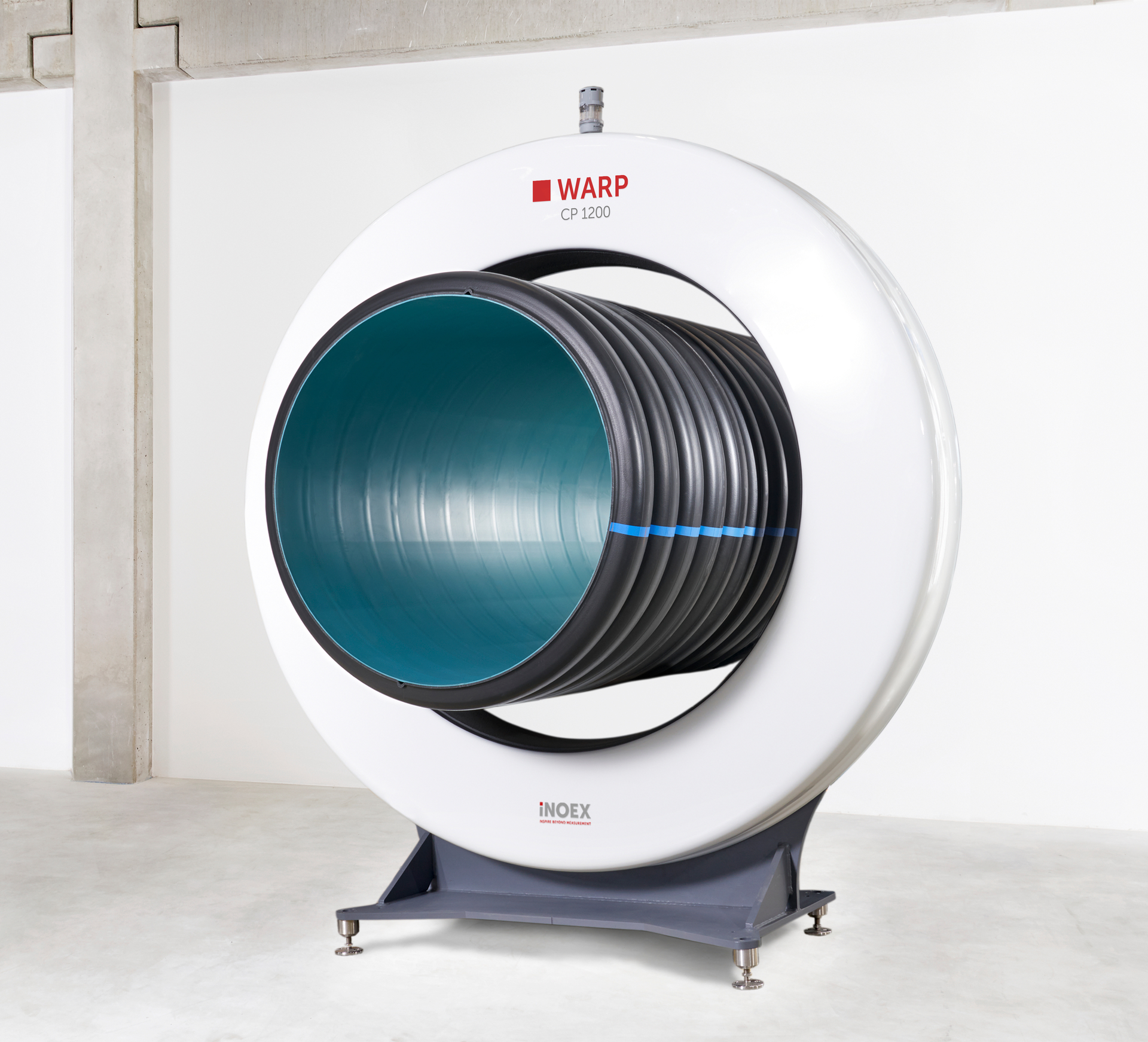

What’s new? Warp CP, an in-line instrument for measuring the outer and inner diameters and wall thicknesses of large corrugated pipes with diameters starting at about 11.8 inches. Using eight radar-based wall-thickness sensors, it can also measure the bells, crests, liners and valleys of pipes.
Benefits Continuous, automated recording of wall-thickness measurements that correspond to the various structures within corrugated pipes.
Inoex LLC, Lancaster, Pa., 717-672-0870, www.inoex.de/en
Vital Statistics
| Inner-diameter range that can be measured | About 11.8 inches to about 39.4 inches |
| Wall-thickness range that can be measured | From 0.67 inch |
| Measuring accuracy of wall thicknesses | To within 0.05mm |
| Measuring accuracy of diameters | To within 0.07mm |
