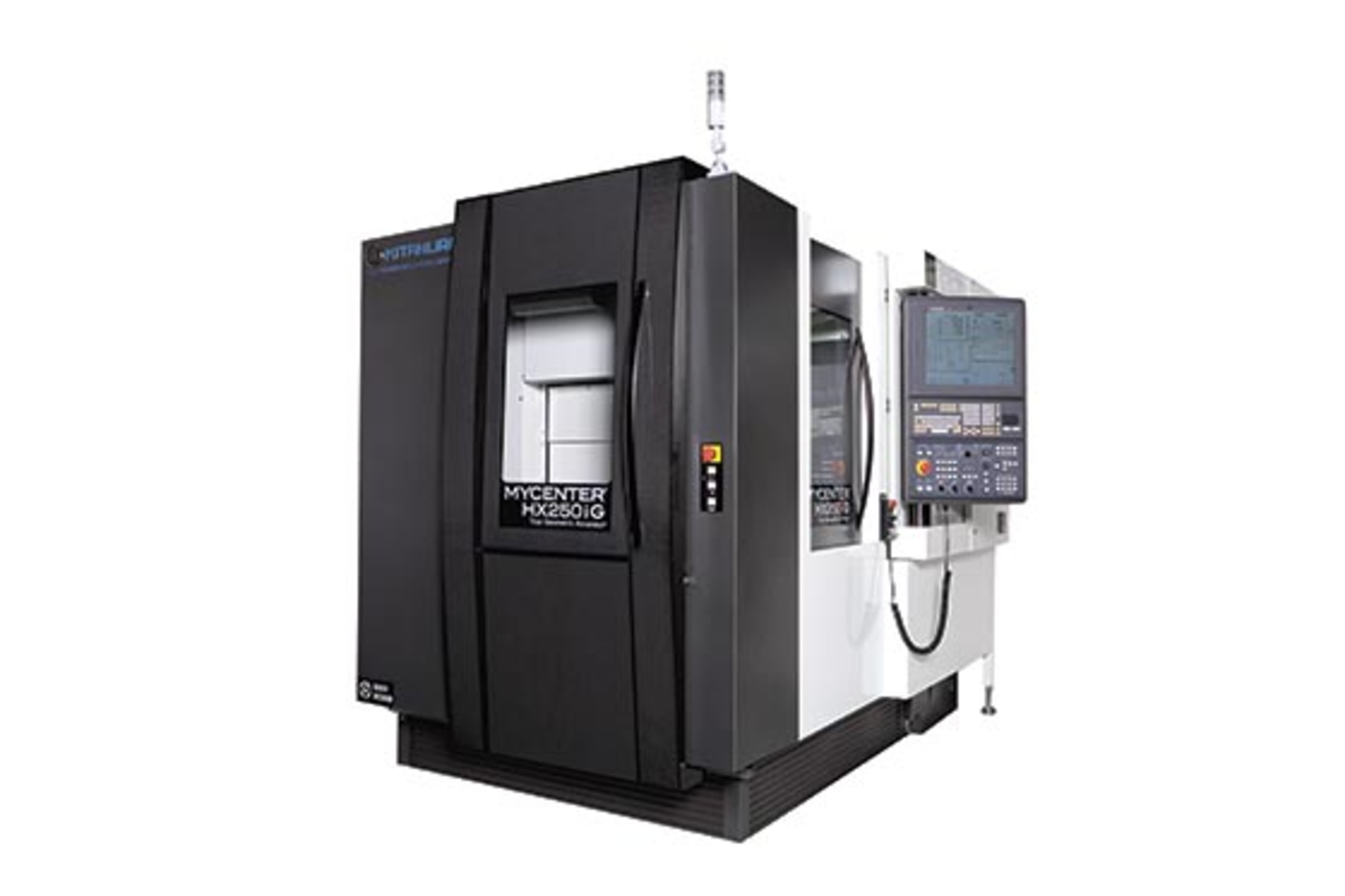

Mycenter-HX250iG Kitamura Machinery's horizontal machining center (HMC) allows users to drill, mill, bore, tap, thread and turn various materials on a single machine.
What's new? The machine, which is an upgrade to an existing model.
Benefits Flexibility, speed and improved accuracy in an easy-to-automate unit with a compact footprint of 6 feet by 9.7 feet. The Mycenter-HX250iG can reach speeds of 2,362 inches per minute and its cast-iron construction provides vibration absorption that improves surface quality and finish capabilities, while simultaneously improving overall tool life. Its two-station automatic process control can be upgraded for unmanned operation. The HMC has a positional accuracy of plus or minus 0.002mm and comes with a high-torque, 15-horsepower, dual-contact spindle. For more detailed applications, a 30,000-rpm HSK-E40 spindle is available as an option.
Kitamura Machinery of U.S.A. Inc., Wheeling, Ill., 847-520-7755, www.kitamura-machinery.com
