SonicLayer 1600 employs additive, subtractive manufacturing

July 19, 2023
Fabrisonic's printer can join dissimilar metals, create complex internal geometries and allow sensors or electronics to be embedded.

3D metal printers Fabrisonic’s hybrid metal 3D printers employ Ultrasonic Additive Manufacturing (UAM), a 3D printing technology that lays down thin layers of metal foil and bonds them layer by layer using ultrasonic sound waves, without melting the metals. The process works with metals including aluminum, copper, stainless steel and titanium, and allows dissimilar metals to be fused together. These printers could be used for making molds and mold components.

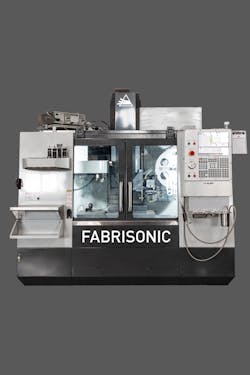

What’s new? Fabrisonic’s Sonic-Layer 1600. The printer builds parts on a commercial vertical machining center, allowing for the use of additive and subtractive operations.

Benefits Optimized part performance. The printer can join dissimilar materials to enhance characteristics such as thermal exchange, create complex internal geometries, and embed sensors and electronics within a finished part. Compared to traditional techniques, it wastes less material because it does not machine down standard billets.

Fabrisonic, Lewis Center, Ohio, 380-227-1400,

Vital Statistics

Overall system height

9 feet

Typical system weight

8,000 pounds

Typical system footprint

7.5 feet by 10 feet

Work envelope

14.5 inches by 14.5 inches by 17 inches
