Forklift boom comes in 4 sizes

Harrington Hoists’ telescoping pivot boom for forklifts has multiple locations where a hook can be attached to meet a variety of lifting and carrying needs.
Feb. 1, 2020
2 min read
Harrington Hoists Inc.

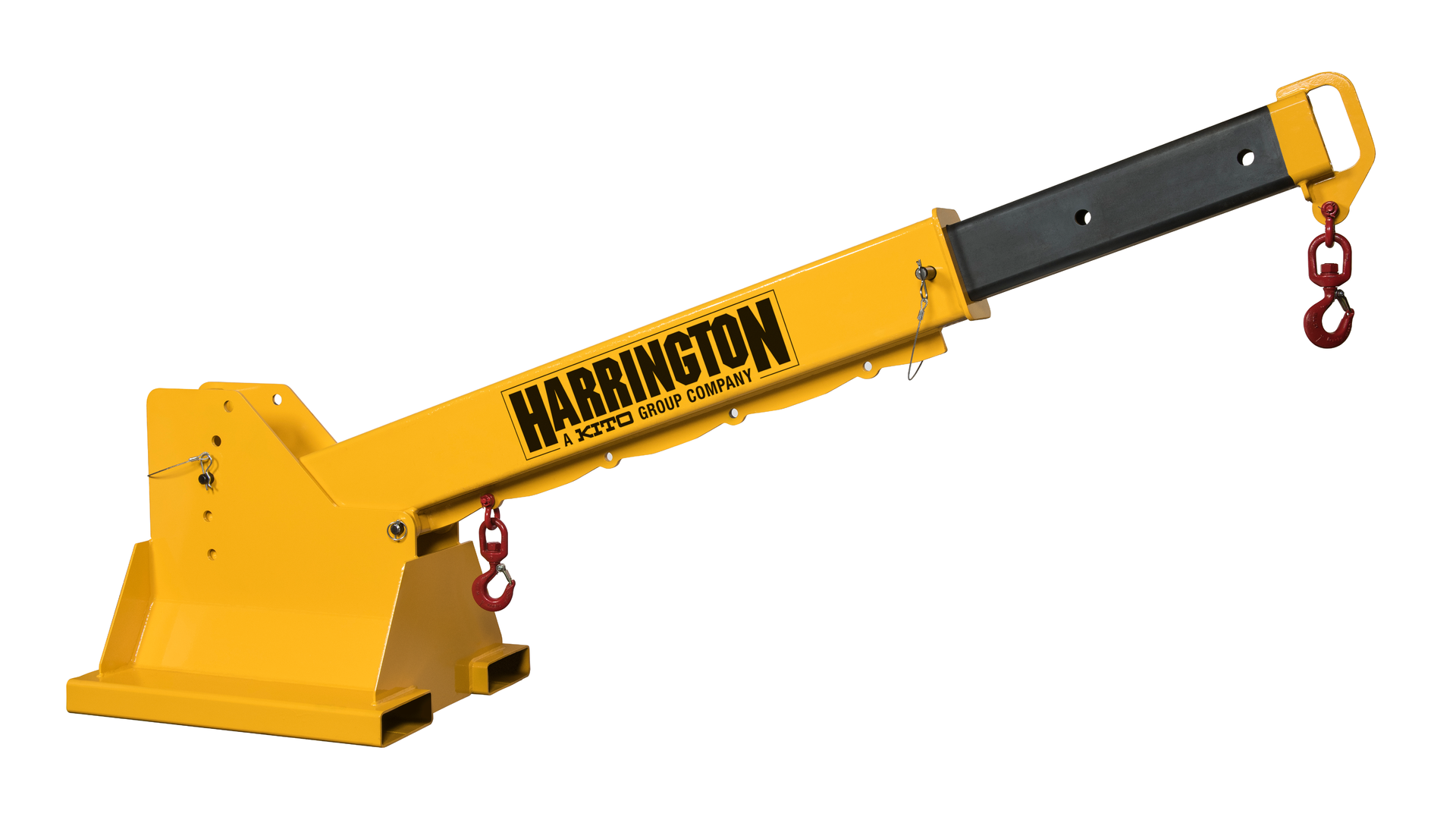

Harrington Hoists' fork truck boom can extend to 12 feet.
Harrington Hoists' fork truck boom can extend to 12 feet.
Harrington Hoists Inc.
Harrington Hoists' fork truck boom can extend to 12 feet.
Harrington Hoists' fork truck boom can extend to 12 feet.
HTBP fork truck boom Harrington Hoists’ telescoping pivot boom for forklifts has multiple locations where a hook can be attached to meet a variety of lifting and carrying needs. It comes in four standard sizes with maximum capacities ranging from 3,000 pounds to 8,000 pounds. All four sizes can accommodate hooks at 3 feet and 6 feet along their length when in a fully retracted position; they can extend to a maximum length of 12 feet. The company also can customize the boom for specific applications. The boom comes standard with a pair of fixed hooks or heavy-duty swivel hooks.

What’s new? The boom, which is a new type of product for Harrington Hoists.

Benefits Versatility and safety. The HTBP telescoping pivot fork truck boom is proof-tested to 125 percent of capacity, has a specified fatigue life of 100,001 to 500,000 load cycles and is manufactured to ASME’s B30.20 and BTH-1 standards.

Harrington Hoists Inc., Manheim, Pa., 717-665-2000, www.harringtonhoists.com

Vital Statistics



Model HTBP-30 HTBP-40 HTBP-60 HTBP-80
Capacity at 3 to 6 feet (pounds) 3,000 4,000 6,000 8,000
Capacity at 12 feet (pounds) 1,500 1,500 2,500 3,100
