Software manages computed-tomography data

    Dec. 1, 2019
    New versions of products from Volume Graphics allows users to export analyses, along with detailed results of measurements and position and form tolerancing, among other improvements.
    Volume Graphics Inc.

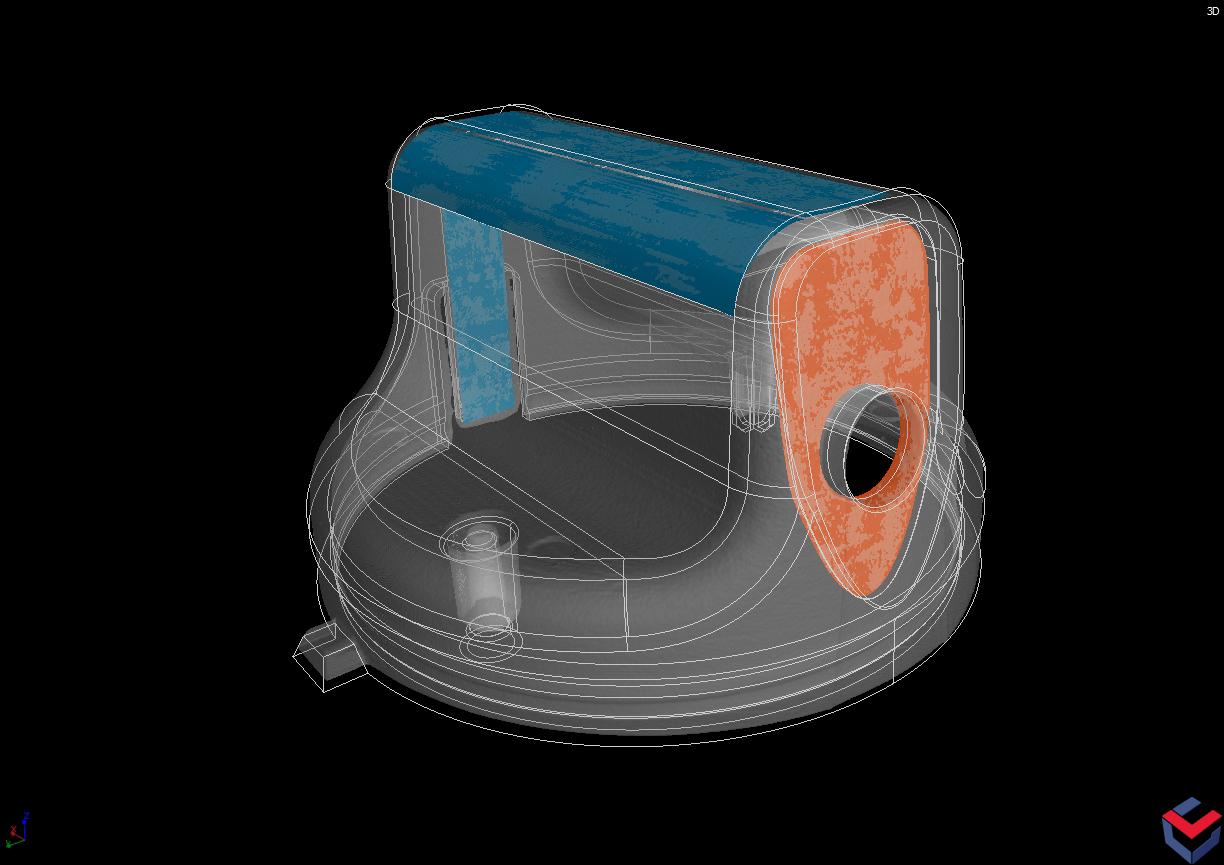

    The manufacturing geometry correction module from Volume Graphics adjusts the design of mold-insert surfaces to compensate for warpage in the prototype.
    The manufacturing geometry correction module from Volume Graphics adjusts the design of mold-insert surfaces to compensate for warpage in the prototype.
    Volume Graphics Inc.
    The manufacturing geometry correction module from Volume Graphics adjusts the design of mold-insert surfaces to compensate for warpage in the prototype.
    The manufacturing geometry correction module from Volume Graphics adjusts the design of mold-insert surfaces to compensate for warpage in the prototype.
    Volume Graphics software Volume Graphics’ VGStudio, VGStudio Max, VGMetrology and VGinLine packages are used to handle computed-tomography (CT) data and can be used in conjunction with both CT machines and coordinate-measuring machines. Each has different functions: VGStudio is used to create visual representations of CT scans, while VGStudio Max and VGMetrology analyze the data. Meanwhile, VGinLine is useful for the automation of these analyses and can be used in inline inspections.

    What’s new? Version 3.3, with a new feature that allows users to export analyses, along with detailed results of measurements and of position and form tolerancing. The latest version also now is capable of batch processing data from parts with identical intended dimensions; in addition, it can simultaneously evaluate surfaces made of multiple materials.

    Benefits Easier sharing of metrology data with quality-assurance systems, better analysis of multi-material parts, faster data analysis, mold-cavity traceability and compatibility with non-CT systems. Version 3.3 makes using results in third-party statistical or analysis software easier.

    Volume Graphics Inc., Charlotte, N.C., 704-248-7736, www.volumegraphics.com
