Drum dumper/conveying unit features mobile base

Flexicon's new Tip-Tite dumper/conveying system allows users to empty drums containing materials such as resin pellets or additives without stirring up dust.
Nov. 1, 2019
2 min read
Flexicon Corp.

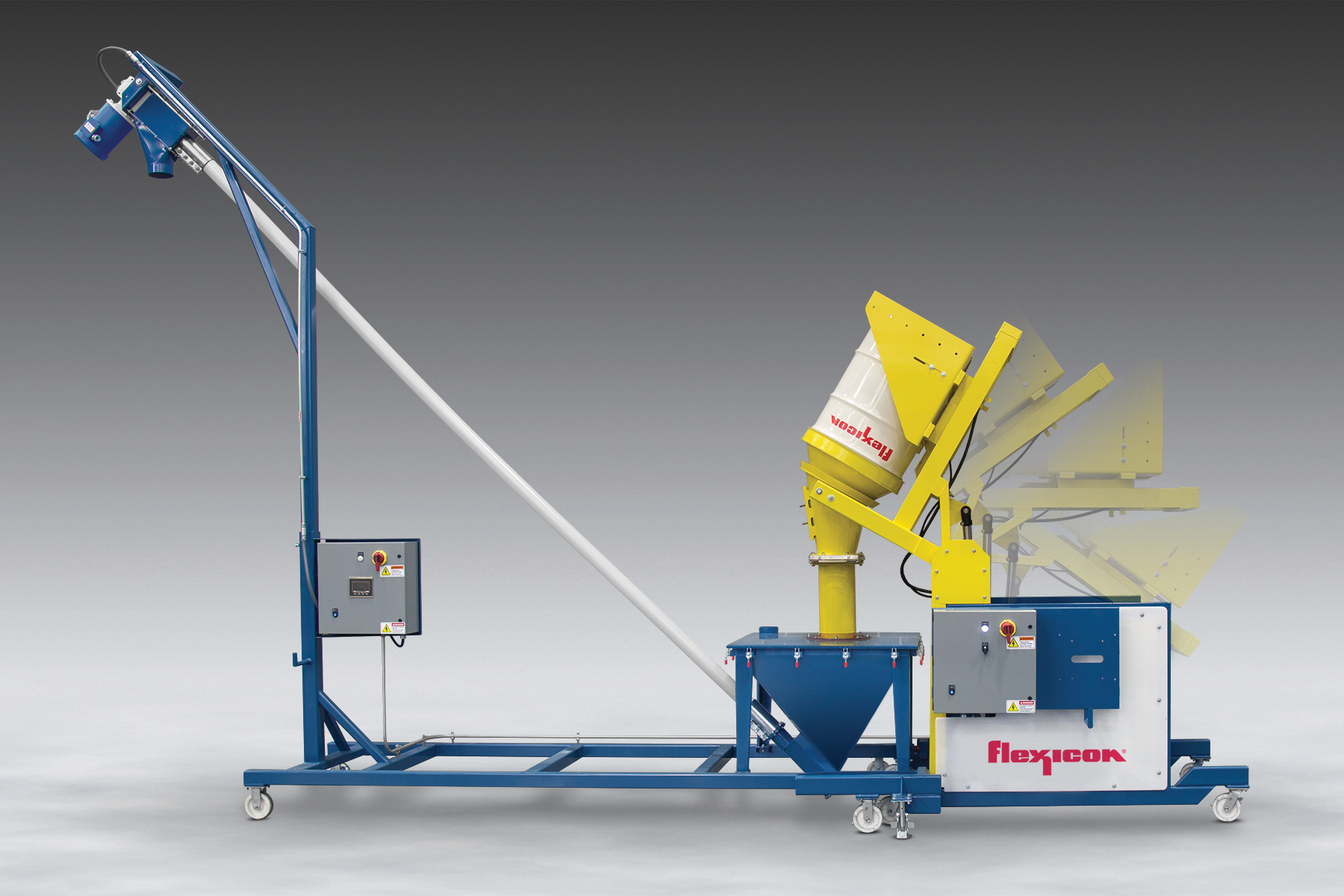

Flexicon's Tip-Tite drum dumper and conveying system
Flexicon's Tip-Tite drum dumper and conveying system

Tip-Tite drum dumper Made from a choice of either carbon steel or stainless steel, this dumper/conveying system from Flexicon allows users to empty drums containing materials such as resin pellets or additives without stirring up dust. Using hydraulics, it can lift and tip a drum; a pneumatically actuated slide-gate valve controls material flow.

What’s new? A moveable configuration. The drum dumper has a flexible screw conveyor on a mobile base; the conveyor, which can be operated independently or while mated to the dumper, can feed material to elevated process equipment and storage vessels.

Benefits Flexibility. Users can easily move the dumper to different locations in their plant.

Flexicon Corp., Bethlehem, Pa., 610-814-2400, www.flexicon.com

Vital Statistics

          Capacity of compatible drums                  30 gallons to 55 gallons
          Height of compatible drums                  3 feet to 4 feet
          Maximum weight of drums                  750 pounds
          Possible dumping angles                  45 degrees, 60 degrees and 90 degrees
