Sensor measures liquid levels

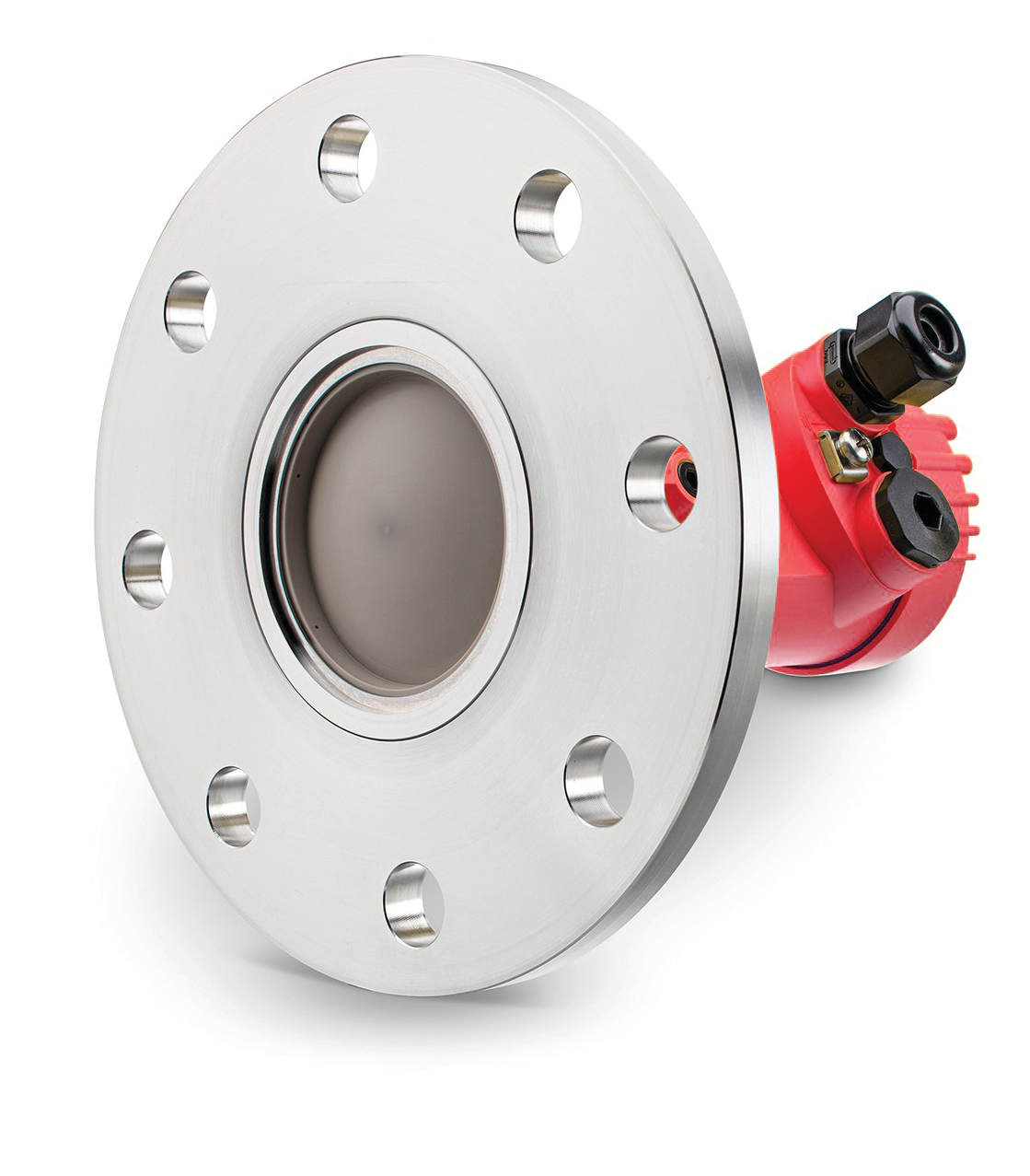

NCR-84 BinMaster’s newest non-contact sensor is used to continuously measure the level of liquids in tanks, such as liquid epoxy resins and PUs, as well as various chemicals used in plastics processing. It also can measure the level of liquid color concentrates, which often are mixed into plastics in vessels with agitators. The compact sensor works by sending out short radar pulses toward the liquid’s surface, which reflects the signal waves back to the instrument. The NCR-84 calculates the liquid level based on the height of the tank and the time it takes for the signal to return. Its signal is very focused, allowing it to avoid obstructions in the tank such as agitators, mixers, fittings and heating coils. It has three mounting options: threaded, flanged and hygienic.

What’s new? The sensor, which became available this spring.

Benefits Precise, reliable measurement of liquids in challenging conditions. The NCR-84 provides highly accurate measurements — even when the sensor is mounted near the tank wall — and is unaffected by changes in material density, temperature or pressure. Additionally, the sensor features chemical-resistant construction for long service life in harsh conditions, and its encapsulated, maintenance-free antenna resists buildup.

BinMaster, Lincoln, Neb., 402-434-9102, www.binmaster.com
